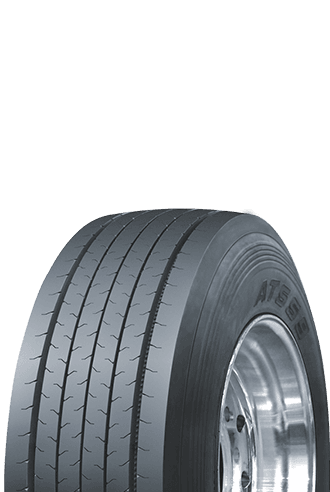

AT559
Benefits and Features
Wide base with high saturation for maximum mileage efficiency
Optimised bead construction for better durability
Scuff resistance ribs protect sidewall from curbing and cutting
Wide base with high saturation for maximum mileage efficiency
Optimised bead construction for better durability
Scuff resistance ribs protect sidewall from curbing and cutting
Descripción
|
Size |
LR / PR |
Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
Single |
Dual | |||||||||
|
(kg) |
(kPa) |
(kg) |
(kPa) | |||||||
|
415/45R22.5 |
L/20 |
156K |
15.5 |
14.00 |
946 |
416 |
4000 |
800 |
- |
- |
|
385/65R22.5 |
J/18 |
158L(160K) |
15.5 |
11.75 |
1072 |
389 |
4250 |
850 |
- |
- |
|
385/65R22.5 |
L/20 |
160K(158L) |
15.5 |
11.75 |
1072 |
389 |
4500 |
900 |
- |
- |
|
425/65R22.5 |
L/20 |
165K |
15.5 |
13.00 |
1124 |
430 |
5150 |
830 |
- |
- |
|
445/65R22.5 |
L/20 |
169K |
15.5 |
13.00 |
1150 |
444 |
5800 |
900 |
- |
- |
|
11.00R20 |
J/18 |
152/149K |
16.0 |
8.0 |
1085 |
293 |
3550 |
930 |
3250 |
930 |
|
12R22.5 |
H/16 |
150/147L |
16.5 |
9.00 |
1085 |
300 |
3350 |
830 |
3075 |
830 |
|
12R22.5 |
J/18 |
152/149L |
16.5 |
9.00 |
1085 |
300 |
3550 |
930 |
3250 |
930 |
|
295/80R22.5 |
H/16 |
150/147M |
15.5 |
9.00 |
1044 |
298 |
3350 |
830 |
3075 |
830 |
|
295/80R22.5 |
J/18 |
152/149L |
15.5 |
9.00 |
1044 |
298 |
3550 |
900 |
3250 |
900 |
|
315/80R22.5 |
J/18 |
154/151M(156/150L) |
16.0 |
9.00 |
1076 |
312 |
3750 |
830 |
3450 |
830 |
